Product Description
Fiber Optic Patch cords are the basic passive components of Optical Fiber Telecommunication System,are utilized to achieve accurate mounting for precision alignment of fiber optical components.
HJ provide high quality optical fiber patch cords,100% tested quality guarantee before delivery,with ISO standards and RoHS compliant.
Our product range covers both single mode and multi-mode patch cords,and be available for all major fiber connector types.
Operation Environment
-Working Temperature:-25~+70ºC Storage Temperature:-40~+85ºC
-Humidity ≤95%(0-35ºC)
-Atmospheric pressure: 62kpa~106kPa.
Features
- High quality performance and Environmental stability
- Good Repeatability, and Exchangeability
- Available fiber cable diameters: 0.9mm, 2.0mm, 0mm
- Fiber cores: Simplex, Duplex or multi-fiber 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers
- Pigtail Types: Bundle, Ribbon, Waterproof, Armored
- Fiber Mode: Single-Mode, Multi-Mode(OM1/OM2/OM3/OM4)
- Connector Types: LC, FC, SC, ST, MU, E2000, etc
- Patch Cord Length: on demand of customers
- Compliant to IEC, TIA/EIA, NTT standards
Technicial Specification
| Item | Parameter |
| Connector | LC, FC, SC, ST, MU, E2000, etc |
| Fiber Counts | Simplex, Duplex |
| Applicable Fiber mode | SM/MM |
| Polish Type | PC | UPC | APC |
| Insert loss | ≤ 0.3dB | ≤ 0.3dB | ≤ 0.3dB |
| Return loss | ≥ 45 dB(PC ) | ≥ 50 dB(UPC ) | ≥ 55 dB(APC ) |
| Mechanical Durability | > 600 Times | > 600 Times | > 600 Times |
| Tensile Strength(N) | ≥55 | ≥55 | ≥55 |
| Connector Color | Blue | Blue | Green |
Order Guide
| FOP- | Fiber Counts | Fiber Diameter | Connector | Polish Type |
| S1 (=SM G652D) | S09 (=Simplex 0.9mm) | 1 (=FC) | P (=PC) |
| S2 (=SM G657A1) | S20 (=Simplex 2.0mm) | 2 (=SC) | U (=UPC) |
| S3 (=SM G657A2) | S30 (=Simplex 3.0mm) | 3 (=LC) | A (=APC) |
| M1 (=MM Om1) | D09 (=Simplex 0.9mm) | 4 (=ST) | |
| M2 (=MM Om2) | D20 (=Duplex 2.0mm) | 5 (=E2000) | |
| M3 (=MM Om3) | D30 (=Duplex 3.0mm) | | |
| M4 (=MM Om4) | 4C09 (=4 Core 0.9mm) | | |
| | 8C09 (=8 Core 0.9mm) | | |
| | 12C09 (=12 Core 0.9mm) | | |
| | 4C20 (=4 Core 2.0mm) | | |
| | 8C20 (=8 Core 2.0mm) | | |
| | 12C20 (=12 Core 2.0mm) |
Packing & Delivery
FAQ
Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.
Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!
Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.
Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.
Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
Product Tags:
|
|

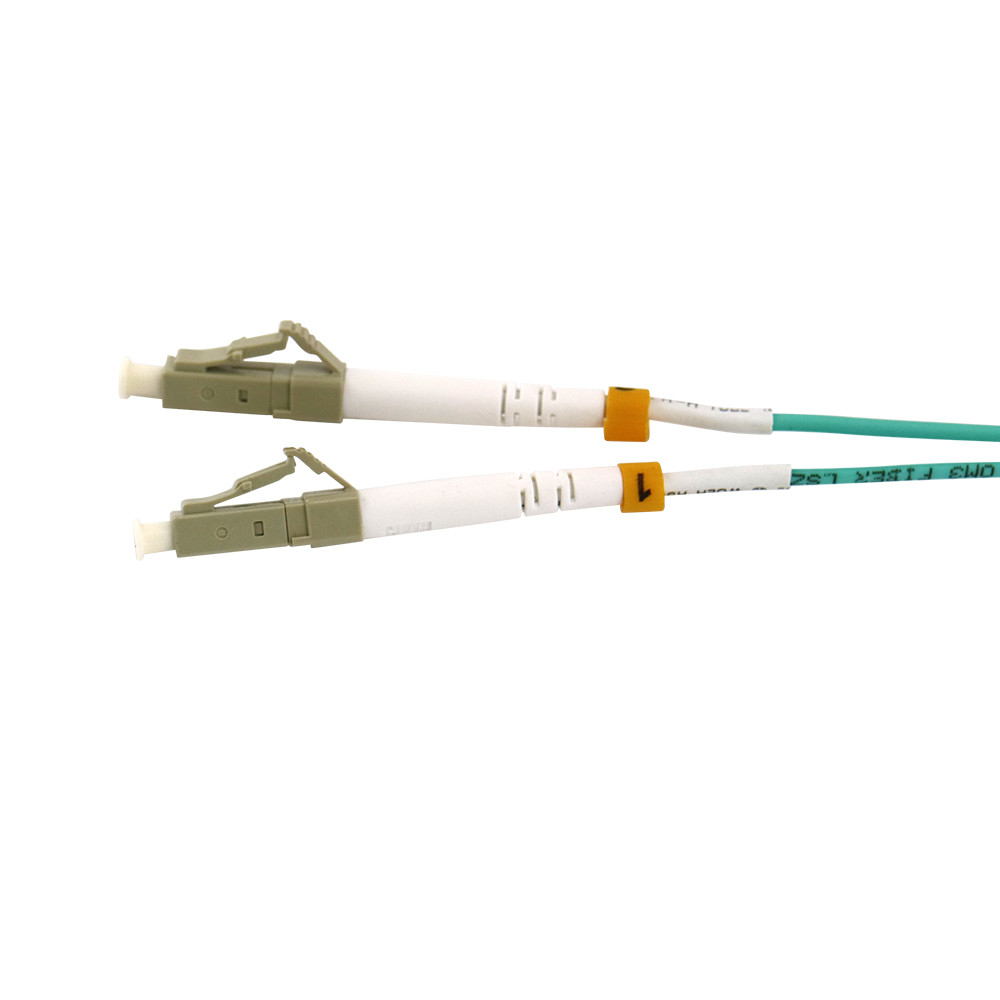

FTTH OM3 LC-LC-UPC 3mm 1m Duplex Fiber Optic Patch Cord LSZH Images
|
